Post Info TOPIC: refurbing my wheels, the cheap way


Guru

Status: Offline
Posts: 1290
Date:
refurbing my wheels, the cheap way
Permalink




so i sanded down the spokes and got an abrasive wheel on the hubs, then mega cleaned the wheel, masked it up and sprayed.

also got a flap wheel on the rim and got them 95% perfect,

so it still looks 100 times better and for about £10





__________________







DTR Legend

Status: Offline
Posts: 3766
Date:
Permalink


Yeah man that looks real nice and shiny! good job dude

__________________

K6 DRZ 400sm



Guru

Status: Offline
Posts: 1290
Date:
Permalink


thanks, just got to get the rear wheel done, first i got to drill out those button head disc bolts no when will yamaha learn lol



__________________







DTR Legend

Status: Offline
Posts: 3766
Date:
Permalink


Cheeky, can do my gixxers if ya want :P there chrome and get dirty after each ride :( slip ya a fiver and a coffee haha!

__________________

K6 DRZ 400sm



Guru

Status: Offline
Posts: 1290
Date:
Permalink


nah im alright cheers, dont have enough time to do mine really,

the trick is to use cling film and some masking tape to hold it on



__________________







DTR Legend

Status: Offline
Posts: 3766
Date:
Permalink


:P worth a try, ah i see how that would work, ima probs just smash some autosol over it give it a nice clean!

__________________

K6 DRZ 400sm



Guru

Status: Offline
Posts: 877
Date:
Permalink


Looks amazing, but what did you do exactly ? sanded down the brown marks ( rust ) and repainted the rims ?.

__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 1290
Date:
Permalink

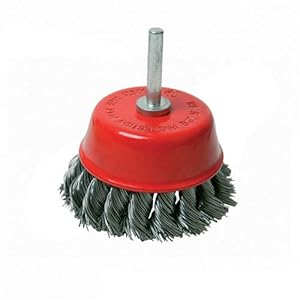

i used a flapwheel on the rims, and used this on the hubs (in the pic) and sanded the spokes lightly and degreased the whole wheel carefully ,

wrapped clingfilm around the tire and rim and used masking tape on the rest,

i used grey enamel paint 3 good coats






__________________







Guru

Status: Offline
Posts: 877
Date:
Permalink


What did you do to make it that shiny then ?

My rims looks exactly like the first pic. but i dont have a sand blower though..

__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 1290
Date:
Permalink


sorry i think you don't understand, probably the translations fault,

i used this on the rims

and sand paper on the spokes



__________________







Guru

Status: Offline
Posts: 877
Date:
Permalink


Ohhhhh xD Fine xD. But did you do some afterwork on the rims after painting them to get them that shiny ?

__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 1290
Date:
Permalink


just some "t-cut" and a polishing cloth



__________________







Guru

Status: Offline
Posts: 877
Date:
Permalink


Okay. looks nice :)

__________________

Sold the DT, Bought a WR 426. Sorry guys.



DTR Legend

Status: Offline
Posts: 3766
Date:
Permalink


and some pure 100% man love to get it that shiny!

__________________

K6 DRZ 400sm



Guru

Status: Offline
Posts: 877
Date:
Permalink


hahaha :D

__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 1053
Date:
Permalink


nice man what make of paint did you use , been toyin with the same idea myself latley but dont want the paint coming off like my calipers do when i blast em with the pressure washer lol

__________________


Guru

Status: Offline
Posts: 1290
Date:
Permalink


shouldnt come off with jet wash , probaly you didn't mega clean and degrease and spray in a dust free warm room,

i did my forks in enamel i i jet wash the forks and wheels and it hold fine

on the wheels i used plasticote enamel,

also see if ya rear disc bolts undo, have to drill all of them outfurious



__________________







Guru

Status: Offline
Posts: 1290
Date:
Permalink


19022012275.jpg19022012276.jpg19022012278.jpg19022012271.jpg19022012274.jpggot the rear wheel done, used t-cut metal polish on the rim and has come out very nice. also polished my DEP pipe with it and has come up like newbiggrin



__________________







Guru

Status: Offline
Posts: 877
Date:
Permalink


But im still wondering what color you painted the rims with ? whats the name on the color ? Gray enamel ?, when i googled that i found a gray matte color, and i cant immagine that gray matte color coming out as that chrome color ...

And did you paint the whole rim or did you just paint the spots that where rusty ?

__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 1290
Date:
Permalink


i did not paint the rim, only the spokes and hubs are painted.

the rims have been cleaned with a flap wheel, scotch bright and Tpcut metal polish

the paint on the spokes and hubs is "plastikote" grey enamel



__________________







Guru

Status: Offline
Posts: 1290
Date:
Permalink


17022012253.jpglook i masked it up



__________________







Guru

Status: Offline
Posts: 877
Date:
Permalink


Okay xD i get it now :P

__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 1290
Date:
Permalink


you going to do it? worth itbiggrin



__________________







Guru

Status: Offline
Posts: 877
Date:
Permalink


well. It certainly looks much better, But my rims are the worst part, My spokes look pretty decent i think. I dont get what part is the hubs ?.but im guessing its the part the spokes are sitting on ?.

But what you did on the rims was you sanded the "rusty" parts down and polished it ?

That doesent sound as much work.

__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 1290
Date:
Permalink


yes the hubs are th middle part where the disc and sprocket bolts to,





__________________







Guru

Status: Offline
Posts: 877
Date:
Permalink


okay, And all you did to the rims was sand away the brown parts and polish it ?

__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 1290
Date:
Permalink


yes but be careful no to scratch to deep



__________________







Guru

Status: Offline
Posts: 877
Date:
Permalink


Okay, thanks for the tip m8, Ill go do that once i get the time : D !

__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 877
Date:
Permalink


So i told my dad about this, And he told me that before i start using sand paper on the chrome i should try something he had lying around, something called "auto sol " or Auto sun in english, And i did. Here are some pics !



Before :







And after :








It worked really well. Didnt take long, and it came it pretty good. My camera isnt the best its a mobile camera. So i dont know if u can see. But it didnt get perfect. The worst parts where it wasnt only rust but also a bit of a cut in the rim didnt go all away. But i dont think its noticable when your not looking for it :P



Attachments
__________________

Sold the DT, Bought a WR 426. Sorry guys.



Guru

Status: Offline
Posts: 877
Date:
Permalink


i did just one side since i didnt have room to turn the bike around in the garage, i was just testing it out. im gonna do the other side of the rim, and also the rear rim some other time ! ;)
