DT125R Forum -> Projects -> The rebuild... The Supermoto 4T conversion...
Post Info TOPIC: The rebuild... The Supermoto 4T conversion...
Harry


Guru

Status: Offline
Posts: 985
Date:
RE: The rebuild... The Supermoto 4T conversion...
Permalink


Got to give props to you, not an easy task by far. Although if I was going to put that much effort in I would have to make it something that was impressive in an insane power kind of way. Like said I think DT's are reliable enough anyway but would love to see it finished would be so weird seeing a dt but hearing a 4 stroke sound haha

Love the sumo rims absolutely sexy as hell, + the swing arm too

__________________

FunkeyMunkeyDavid


Guru

Status: Offline
Posts: 802
Date:
Permalink


love the fact that i'm not the only one retarded enough to fit a motox rear end to a dt lol really must finish mine.

be interesting to see what you have in mind for the linkage too. still think it needs a fabricated y shape linkage biggrin



__________________

money killed everything....
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink


Cheers guys. Im still thinking what the best route to take is with the swing arm linkage. Ive got the standard knuckle now. I want to keep the same geometry as the wr if possible so im thinking of lifting the top shock pivot point and shortening the lower part of the shock that attaches to the knuckle. Then custom dog bones to set the height.

__________________
FunkeyMunkeyDavid


Guru

Status: Offline
Posts: 802
Date:
Permalink


not a bad plan. i'm toying with a yz 80/85 shock as its shorter but can still can take the strain



__________________

money killed everything....
CarlosRexx


Guru

Status: Offline
Posts: 1066
Date:
Permalink


Have you got all the WR swingarm sorted and in now? If so mind getting some photos and if the offer of making up some more spacers for the swingarm is going then I'll take some. Got a wr450 swinger on its way to me :D

__________________

If you're not fast, you're last

TINNNNGGG TA TA TINGGGG.
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink


Sorry chap havnt had time to work on the bike but when I do ill get you some pics!

__________________
CarlosRexx


Guru

Status: Offline
Posts: 1066
Date:
Permalink


No worries fella whenever youre ready :)

__________________

If you're not fast, you're last

TINNNNGGG TA TA TINGGGG.
CarlosRexx


Guru

Status: Offline
Posts: 1066
Date:
Permalink


Ive just brought the WR swingarm from ebay, £30 quid all in. From a 450, not sure about bearings and **** so I'll check when it comes. I'm a little excited to beef up the rear abit :D hows things going with this dude?

__________________

If you're not fast, you're last

TINNNNGGG TA TA TINGGGG.
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink

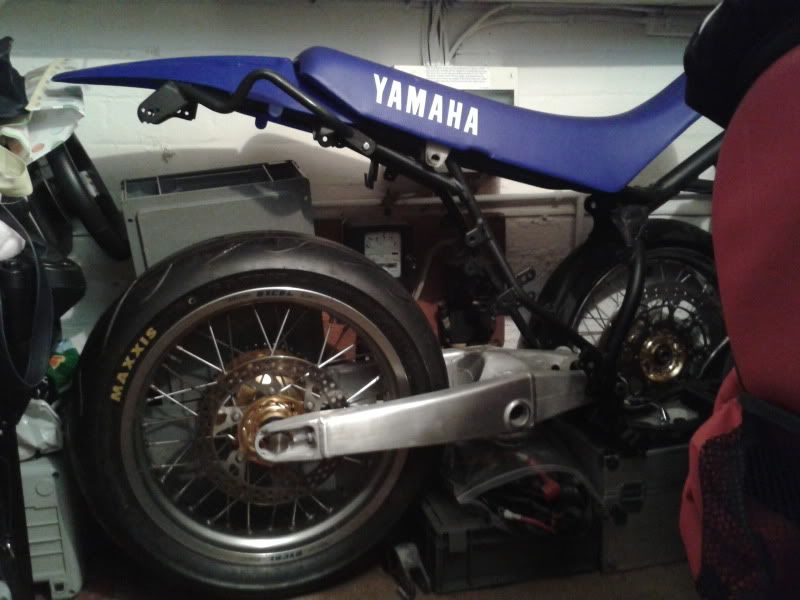

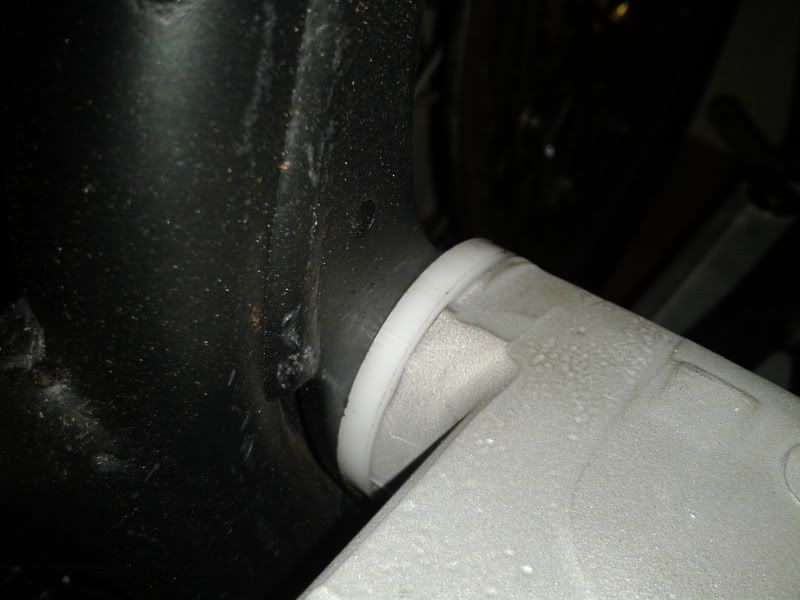

Apologies for the lack of progress but I have managed to make up some spacers and a new rear spindle. Spacers are made from acetal. Any way, Pic:











__________________
Calum122


Guru

Status: Offline
Posts: 7569
Date:
Permalink


Are you sure that spacer is going to last.

__________________

Always Originate, Never Pirate!

The Leviathan Project
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink


Be reet. Its made from acetal so its pretty solid and hard wearing. Theres not much lateral thrust on that part of the swing arm tbh.

__________________
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink


£1 each plus a first class stamp :)

Also, measure the width of the pivot engine mount on the DT engine and I can make some up for there.



-- Edited by NathanH on Friday 3rd of May 2013 11:48:25 AM

__________________
CarlosRexx


Guru

Status: Offline
Posts: 1066
Date:
Permalink


NathanH, how much to knock me up the same set of spacers? As I've got the same swingarm and I'm having trouble getting my engineer to make anything up as he's pretty busy at the moment.

__________________

If you're not fast, you're last

TINNNNGGG TA TA TINGGGG.
CarlosRexx


Guru

Status: Offline
Posts: 1066
Date:
Permalink


deal haha! youve got a message too

__________________

If you're not fast, you're last

TINNNNGGG TA TA TINGGGG.
Calum122


Guru

Status: Offline
Posts: 7569
Date:
Permalink


Just had another proper look through this and to be fair it does look wicked!

__________________

Always Originate, Never Pirate!

The Leviathan Project
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink


Cheers dude.

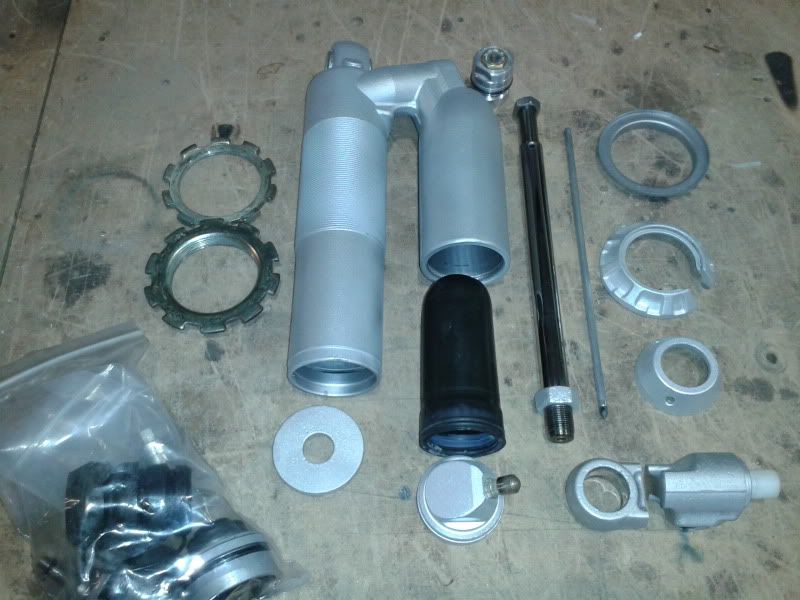

Rebuilding my shock. Bead blasted and shortened the lower mount.





__________________
NEV


Guru

Status: Offline
Posts: 2515
Date:
Permalink


You'll be putting in a decent 'V' prep in for tigging the bottom of the shock, yes?

__________________


NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink


Nah, few nuts and bolts will do ;)

__________________
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink

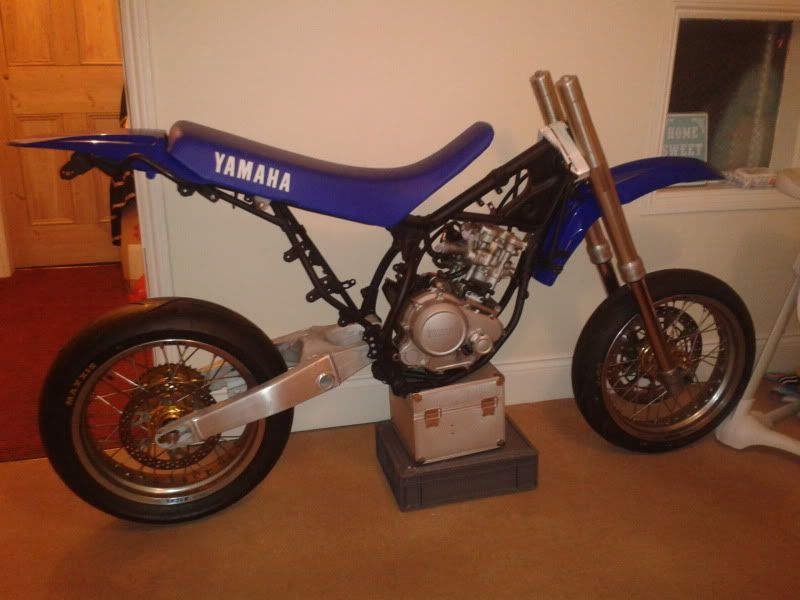

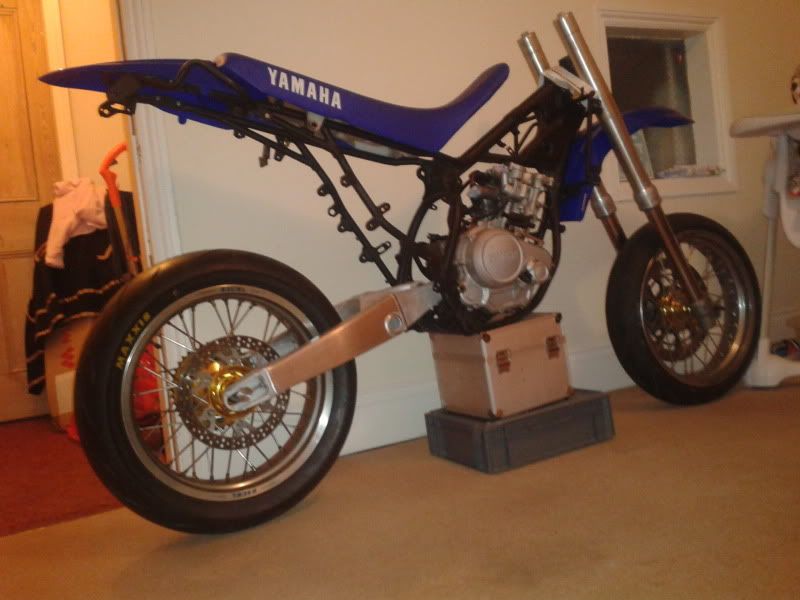

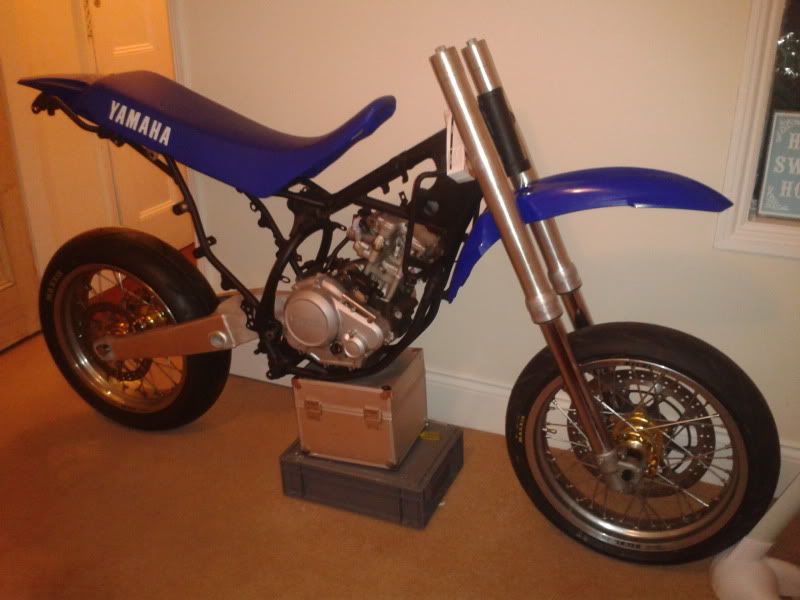

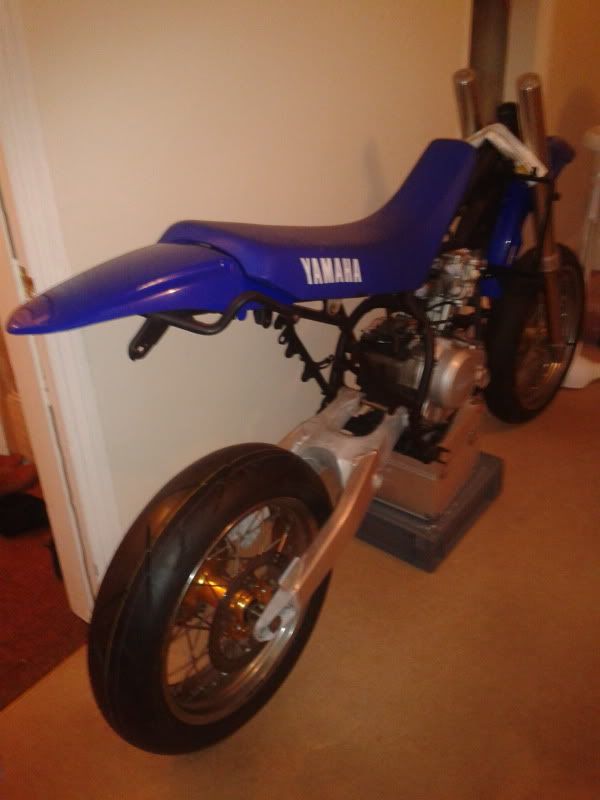

Did another quick mock up again tonight as the mrs was out for the evening.









Cant wait to ride it!

__________________
Liam12


DTR Legend

Status: Offline
Posts: 1596
Date:
Permalink


Kills me knowing this isn't going to be an actual dt : ( if it was it would be one of the most amazing dts ever!

__________________

FASTER FASTER UNTIL THE THRILL OF SPEED OVERCOMES THE FEAR OF DEATH
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink


Its still a DT... ish

__________________
MartZ0r


DTR Respected Member

Status: Offline
Posts: 50
Date:
Permalink


thats a bad ass conversion, and that swinger is the nuts!

Loving the engineering to get it to fit. As nev said though put a good V root into it if your tigging it. Is it alloy? id be sure to check for fractures/cracks as tig welding on alloy cast can be hit or miss sometimes.

is that back wheel a 160 or a 180?

__________________
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink


I know lol. Its just been cut for now to check the length. Cheers for the comments, ive still got so far to go but its little mock ups every so often that spur me on. Rear tyres a 160 :)

__________________
FunkeyMunkeyDavid


Guru

Status: Offline
Posts: 802
Date:
Permalink


its not just me that cant get the lengths right on the shock then lol

there just too tall no coming along real well though bud,defo be different biggrin



__________________

money killed everything....
Nathlaad


DTR Legend

Status: Offline
Posts: 3766
Date:
Permalink


i iz got plenty of length to go around

__________________

K6 DRZ 400sm
FunkeyMunkeyDavid


Guru

Status: Offline
Posts: 802
Date:
Permalink


the lengths all good,but what about the girth? biggrinbiggrin



__________________

money killed everything....
Nathlaad


DTR Legend

Status: Offline
Posts: 3766
Date:
Permalink


pin sized

__________________

K6 DRZ 400sm
FunkeyMunkeyDavid


Guru

Status: Offline
Posts: 802
Date:
Permalink


biggrinbiggrinbiggrinbiggrin



__________________

money killed everything....
stillbroke


Guru

Status: Offline
Posts: 668
Date:
Permalink


really want to see the result of this !

__________________

getting there .....
NathanH


DTR Senior Member

Status: Offline
Posts: 211
Date:
Permalink


The wheels will be in line, its standard wr front and rear. At a quick look I think ill have to space the sprokets so the chain misses the 160!



-- Edited by NathanH on Thursday 9th of May 2013 06:10:33 PM

__________________
